This functions allows you to change the edge handling after creating the texture.

OOP Syntax Help! I don't understand this!

• Method:texture:setEdge(...)

Syntax

​bool dxSetTextureEdge ( ​texture theTexture, ​string textureEdge, [ ​int border-color = 0 ] )

Required Arguments

• theTexture: The affected texture.
• textureEdge: The texture edge mode.
  • wrap: Wrap the texture at the edges (default).
  • clamp: Clamp the texture at the edges. This may help avoid edge artifacts.
  • mirror: Mirror the texture at the edges.
  • border
  • mirror-once

Optional Arguments

NOTE: When using optional arguments, you might need to supply all arguments before the one you wish to use.

• border-color (default: 0): If textureEdge is set to border, you are able to define a border color here.

Returns

• bool: result

Returns true if success, false otherwise.

Code Examples

Example 1 Example 2 (OOP)

client

The following example draws the image ingame.

local renderTarget1 = dxCreateScreenSource(300, 300)
dxSetTextureEdge(renderTarget1, "wrap")
local renderTarget2 = dxCreateScreenSource(300, 300)
dxSetTextureEdge(renderTarget2, "mirror")
local renderTarget3 = dxCreateScreenSource(300, 300)
dxSetTextureEdge(renderTarget3, "clamp")
local renderTarget4 = dxCreateScreenSource(300, 300)
dxSetTextureEdge(renderTarget4, "border", tocolor(255, 0, 0))

addEventHandler("onClientRender", root, function()
    -- Update the screen sources
    dxUpdateScreenSource(renderTarget1)
    dxUpdateScreenSource(renderTarget2)
    dxUpdateScreenSource(renderTarget3)
    dxUpdateScreenSource(renderTarget4)

    -- Draw screen sources in different modes
    dxDrawImageSection(20, 200, 300, 300, -50, 0, 100, 100, renderTarget1)
    dxDrawImageSection(350, 200, 300, 300, -50, 0, 100, 100, renderTarget2)
    dxDrawImageSection(680, 200, 300, 300, -50, 0, 100, 100, renderTarget3)
    dxDrawImageSection(1010, 200, 300, 300, -50, 0, 100, 100, renderTarget4)
end)

client

OOP Required

The following example draws the image ingame.

local renderTarget1 = DxScreenSource(300, 300)
renderTarget1:setEdge("wrap")
local renderTarget2 = DxScreenSource(300, 300)
renderTarget2:setEdge("mirror")
local renderTarget3 = DxScreenSource(300, 300)
renderTarget3:setEdge("clamp")
local renderTarget4 = DxScreenSource(300, 300)
renderTarget4:setEdge("border", tocolor(255, 0, 0))

addEventHandler("onClientRender", root, function()
    -- Update the screen sources
    renderTarget1:update()
    renderTarget2:update()
    renderTarget3:update()
    renderTarget4:update()

    -- Draw screen sources in different modes
    dxDrawImageSection(20, 200, 300, 300, -50, 0, 100, 100, renderTarget1)
    dxDrawImageSection(350, 200, 300, 300, -50, 0, 100, 100, renderTarget2)
    dxDrawImageSection(680, 200, 300, 300, -50, 0, 100, 100, renderTarget3)
    dxDrawImageSection(1010, 200, 300, 300, -50, 0, 100, 100, renderTarget4)
end)

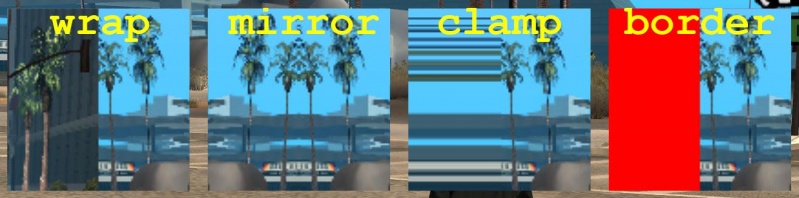

Gallery

Click on the image to view the full preview along with the description.
